Create a Cluster

A cluster is a logical group of hosts (compute nodes).

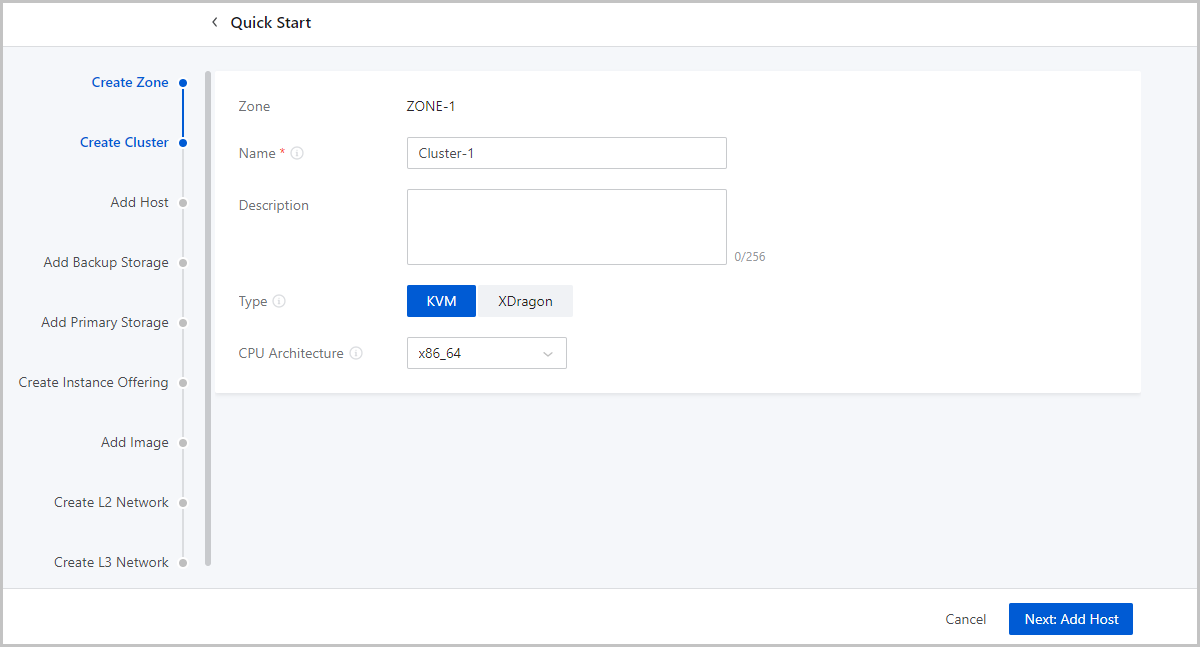

Figure 1. Create Cluster


On the displayed page, set the following parameters:
  • Name: Enter a name for the cluster.
  • Description: Optional. Enter a description for the cluster.
  • Type: Optional. Select a hypervisor type for the server. Valid values: KVM and XDragon.
  • CPU Architecture: Optional. Set the CPU architecture of the hosts in the cluster. If left blank, when you add the first host to the cluster, the CPU architecture of the hosts that you later add to the cluster must be the same as the architecture of this host. You cannot change the CPU architecture of the cluster any more.
Click Next to complete the creation of the cluster.
