Create an L3 Network
An L3 network includes IP ranges, gateway, DNS, and other network configurations that are used by VM instances.

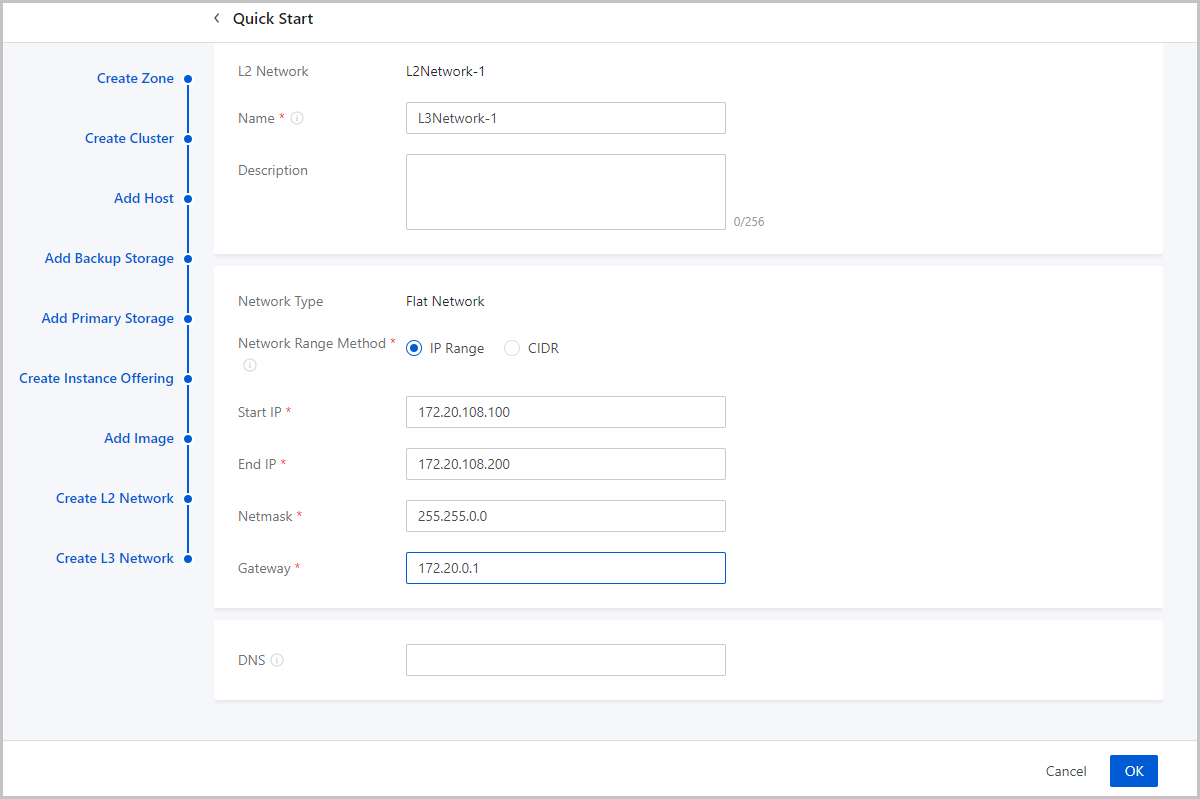

On the displayed page, set the following parameters:
- Name: Enter a name for the L3 network.
- Description: Optional. Enter a description for the L3 network.
- Network Type: The wizard supports only flat network.
- Network Range Method: Select a method to add a
network range for the L3 network. You can select IP Range or CIDR.If you select IP Range, you need to set the following parameters:
- Start IP: Set a start IP address for the network range, for example, 172.20.108.100.
- End IP: Set an end IP address for the network range, for example, 172.20.108.200.
- Netmask: Set a netmask for the network range, for example, 255.255.0.0.
- Gateway: Set a gateway for the network range, for example, 172.20.0.1.
- DNS: Add a DNS server to provide domain name resolution services for the L3 network. You can specify 223.5.5.5, 8.8.8.8, or 114.114.114.114.
If you select CIDR, you need to set the following parameters:- CIDR: Set a CIDR block for the L3 network, for example, 192.168.108.1/24.
- Gateway: Set a gateway for the L3
network, for example, 192.168.108.1.
Note:
- You can use the first or last IP address in the specified CIDR block as the gateway.
- If left blank, the first IP address in the specified CIDR block is used as the gateway.
- DNS: Add a DNS server to provide domain name resolution services for the L3 network. You can specify 223.5.5.5, 8.8.8.8, or 114.114.114.114.
The wizard is complete.
