VPC Firewall

A VPC firewall manages the south-north traffics of VPC networks, and allows you to manage the access control policies by configuring rule sets and rules.

The VPC firewall topology is shown in VPC Firewall.

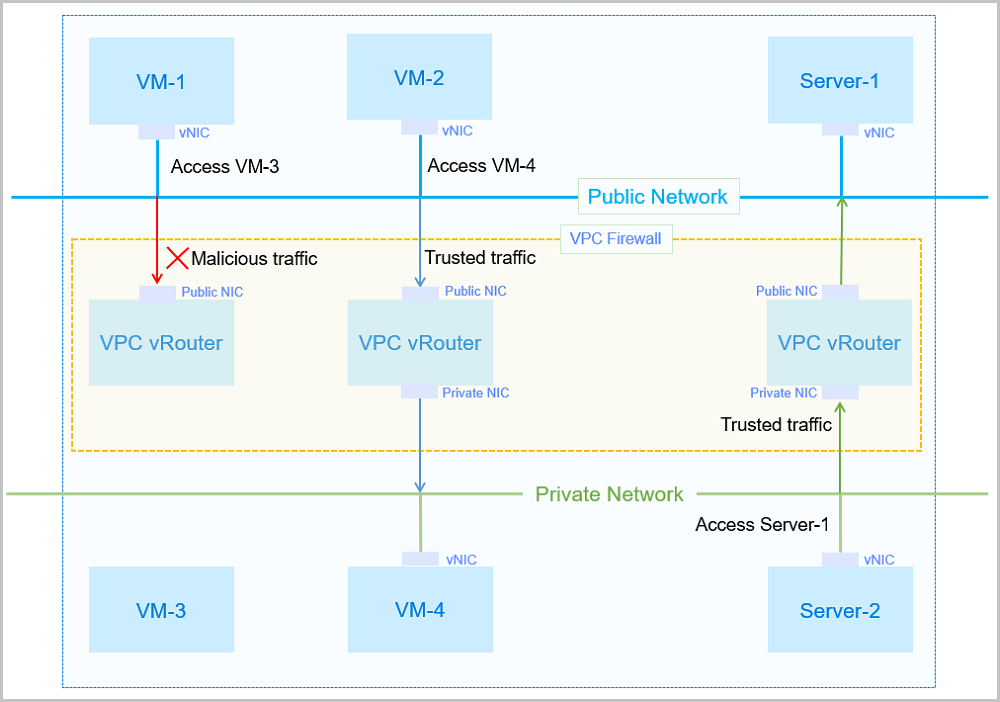

Figure 1. VPC Firewall


  • Assume that VM-1 attempts to access VM-3: The traffic from VM-1 will match the inbound rule set of the public NIC on the VPC vRouter. If malicious traffics are detected, the access is denied.
  • Assume that VM-2 attempts to access VM-4: The traffic from VM-2 will match the inbound rule set of the public NIC on the VPC vRouter, and then will match the outbound rule set of the private NIC on the VPC vRouter. If trusted traffics are detected, the access is allowed.
  • Assume that Server-2 attempts to access Server-1: The traffic from Sever-2 will match the inbound rule set of the private NIC on the VPC vRouter, and then will match the outbound rule set of the public NIC on the VPC vRouter. If trusted traffics are detected, the access is allowed.
Difference between a VPC firewall and a security group: A VPC firewall manages the south-north traffic, and can be applied to the entire VPC. On the contrary, a security group mainly manages the east-west traffic, and can be applied to VM NICs. They can complement each other. The detailed differences are as follows.
Comparison Security Group VPC Firewall
Application scope VM NIC The entire VPC network
Deployment mode Distributed Centralized
Deployment location VM instance VPC vRouter
Configuration policy Supports only allowed policies Enables you to customize the accept policy, drop policy, or reject policy as needed
Priority Takes effect according to the configuration sequence Enables you to customize priorities
Matching rules Source IP address, source port, and source protocol Source IP address, source port, destination IP address, destination port, protocol, and packet status

Notice

When you use a VPC firewall, note the following:
  • One VPC vRouter can be used to create only one VPC firewall.
  • One NIC includes an inbound direction and an outbound direction. You can configure only one rule set for each direction.
  • The control mechanism of a VPC vRouter will restrict external access to VM instances without an EIP. If you are using static routing or OSPF, note that the static routing and OSPF will not be available when the firewall with the priority 9999 is disabled. If you still want to use static routing and OSPF, add an inbound rule to the public network NIC.
When you use a rule set, note the following:
  • One rule set can have up to 9999 rules attached.
  • Only outbound rule sets can be created. Outbound rule sets apply to the outbound direction of the NIC.
  • Exercise caution. The inbound and outbound directions of a rule set are designed for VPC vRouters.
  • The inbound rule sets are created by the system by default. You can customize your rules in an inbound rule set, but you cannot delete inbound rule sets.
  • The rule sets of the same outbound direction can be reused on multiple NICs.
When you use a rule, note the following:
  • A rule is a part of a rule set, and cannot be reused on multiple rule sets.
  • A system rule is a preconfigured rule that supports system services. The system rule has two priority ranges: 1-1000 and 4000-9999. The priority range of a custom rule is 1001-2999. The system reserved priority range is 3000-3999. Lower integers indicate higher priorities.
  • System rules cannot be added, modified, or deleted.
