Create an Elastic IP

On the main menu of ZStack Cloud, choose Resource Center > Network Service > Basic Network Service > EIP. On the EIP page, click Create EIP. Then, the Create EIP page is displayed.

On the displayed page, set the following parameters:

Name: Enter a name for the EIP.
Description: Optional. Enter a description for the EIP.
You can use a virtual IP address by using either of the following methods:
- VIP: Select Create VIP.
  - Network: Select an L3 network to create a VIP. The network can be a public network or flat network.
  - Network Range: Optional. Select a network range.
    Note:
    - If you selected an IPv4 public network, you can select a normal network range or an address pool. If you selected an IPv6 public network, you can only select a normal network range.
    - If you selected an IPv4 or IPv6 public network, you can only select a normal network range.
    - If you selected an IPv4 VPC network, you can only select a normal network range.

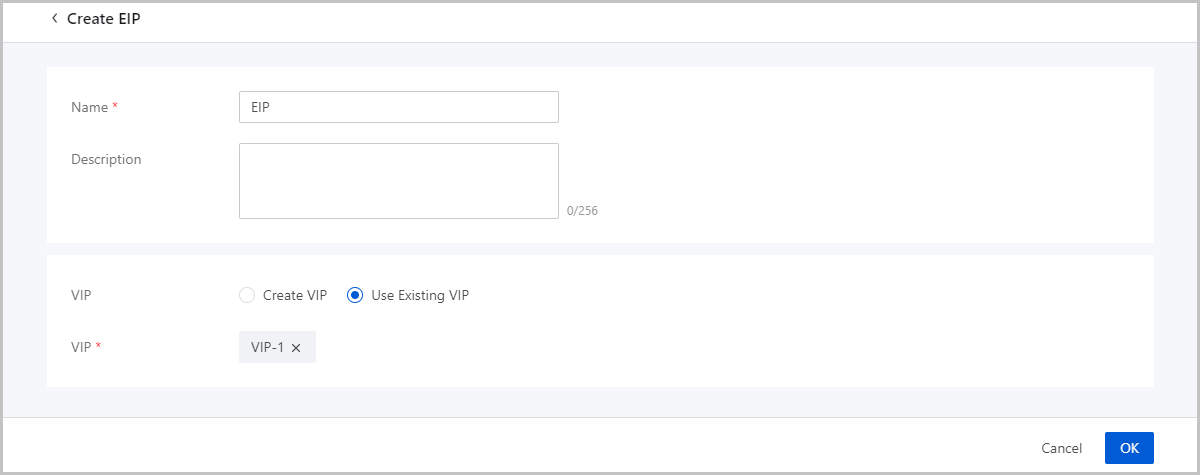

- VIP: Select Use Existing VIP.
  Set the following parameter:
  - VIP: Select an existing VIP.

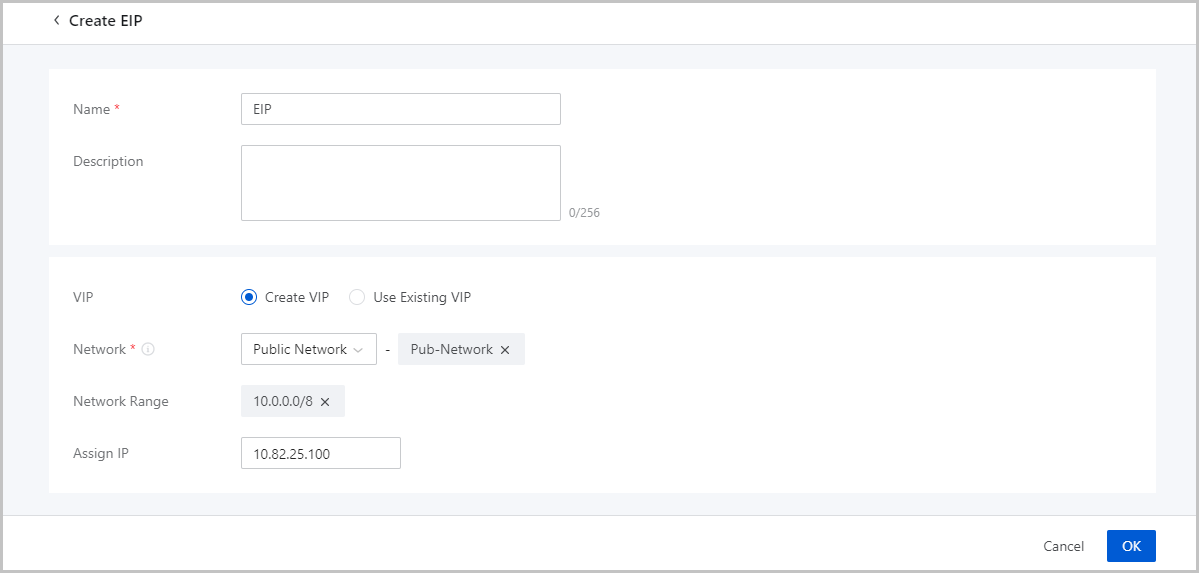

Figure 1. Create EIP
