What is Elastic IP?

An elastic IP address (EIP) functions based on the NAT technology. IP addresses in a private network are translated into an EIP that is in another network. This way, private networks can be accessed from other networks by using EIPs.

Concepts

  • Public EIP: The EIP service provided by a virtual IP address (VIP) created from a public network.
    • The private network is an isolated network that cannot be directly accessed from other networks or the Internet. A public EIP can directly associate the access to a public network with the VM IP of the private network.
    • A public EIP can be associated with or disassociated from a VM instance dynamically.
    • A public EIP can be associated with VM instances created from private networks, such as flat networks and VPC networks.
      • The public EIP realized by a distributed EIP can access flat networks through public networks.
      • A VPC vRouter can be used to access VPC networks through public networks.
  • Flat EIP: The EIP service provided by a VIP created from a flat network.
    • L3 isolations exist between flat networks of different network ranges. Therefore, these flat networks cannot be accessed directly. A flat EIP can be used to associate the access to one flat network with the VM IP created from another flat network.
    • A flat EIP can be associated with or disassociated from a VM instance dynamically.
    • A flat EIP can be associated with VM instances created from other flat networks.

Scenarios

  • EIP usage in a flat network scenario:

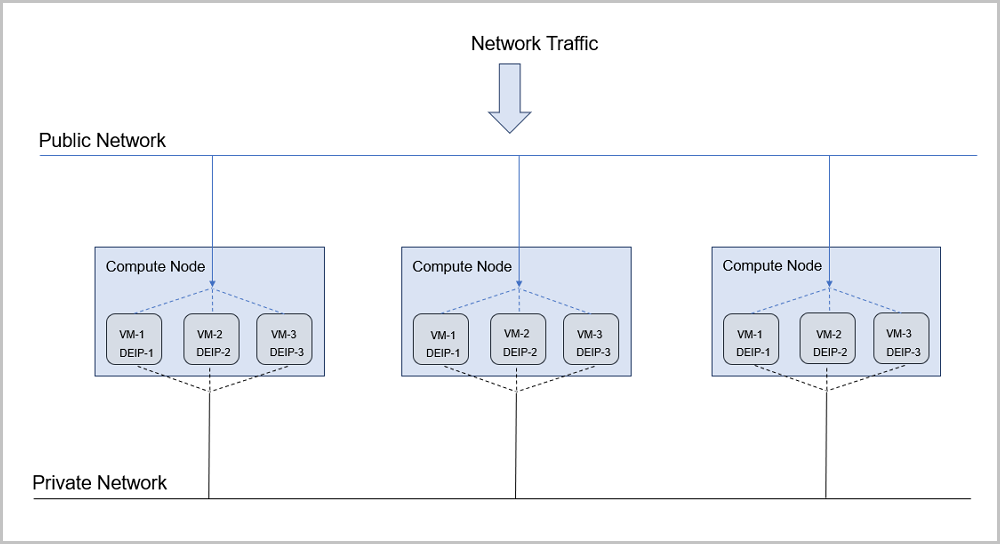

    The following diagram shows how an EIP is used in a flat network scenario.

    Figure 1. EIP Usage in Flat Network Scenario


    • Public networks can connect to the Internet through firewalls.
    • Flat networks provide IP addresses for VM instances in each compute node. Notice that these IP addresses cannot connect to the Internet by default.
    • A distributed EIP is deployed on each compute node, and can be associated with public networks or private networks separately.
  • EIP usage in a VPC network scenario:

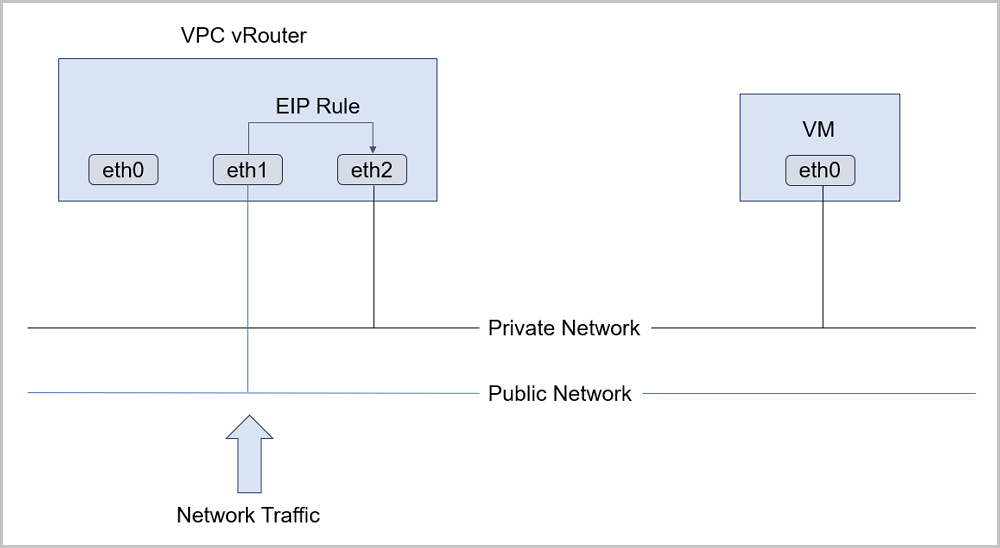

    The following diagram shows how an EIP is used in a VPC network scenario.

    Figure 2. EIP Usage in VPC Network Scenario


Considerations

When you use an EIP, note that:
  • An instance can have only one EIP associated at a time.
  • The EIP association and disassociation operations take effect in real time.
  • Associating or Disassociating an EIP does not affect the running of an instance.
