ZStack allows you to add a log server to the cloud. With the log server,
you can collect management node logs and quickly locate problems, thereby improving the
cloud O&M efficiency.
Add Log Server
In the navigation pane of the ZStack Private Cloud UI, choose Platform Management > Log Server. On the Log Server page, click Add
Log Server. On the displayed Add Log Server
page, set the following parameters:
Name: Enter a name for the log server.
Description: Optional. Enter a description for the
log server.
IP Address: Enter the IP address of the log
server.
UDP Port: Enter a port to provide services for the
user datagram protocol (UDP).
Log Level: Select the level of log to be
received.
Note: Make sure that the log level that you selected here is
the same as that of the log server. Otherwise, the log server might fail
to receive the logs.

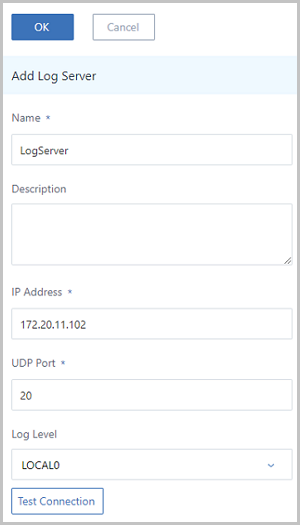

As shown in Figure 1.Figure 1. Add Log Server Click Test Connection. Then, the system automatically
checks the connectivity of the IP address. If the connection fails, check whether
the IP address is correct, whether the network is available, and whether the log
level is the same as that of the log server. If the check passed, click
OK.
Note:
Enter the relevant information according to your actual situation. If you
have any questions, contact the relevant log server provider.
Note: Make sure that the log level that you selected here is
the same as that of the log server. Otherwise, the log server might fail
to receive the logs.
