Console Proxy

In the navigation pane of the ZStack Private Cloud UI, choose Platform Management > Console Proxy. The Console Proxy page displays the information about the console proxy. This information is used to open the console of the corresponding VM instance, as shown in Figure 1.

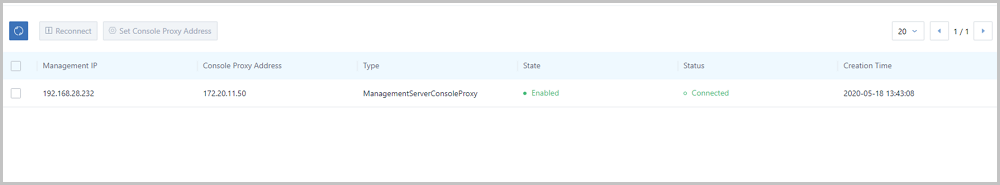

Figure 1. Console Proxy Page


  • You need to modify the console proxy address only in the management node.
  • The default proxy address is the IP address of the management node.
  • The displayed type is ManagementServerConsoleProxy.
  • You can open the console of a VM instance only when the state of the console proxy is Enabled and the status is Connected.
You can perform the following operations on a console proxy:
  • Reconnect: You can reconnect the console proxy if the console of a VM instance fails to be opened. After reconnection, you can open the console again when the proxy state is Enabled and the proxy status is Connected.
  • Set the console proxy address: ZStack allows you to set the console proxy address on the UI.
    • The console proxy address can either be the public IP address, the NAT address, or the domain name of a management node. Port settings are not supported.
    • The setting takes effect immediately without a need to restart the management node.
