Public Network

Generally, a public network is a network that can directly connect to the Internet. The public network is a logical concept, so you can customize the network in the environment that cannot connect to the Internet. Network services are provided on vRouters or VPCs. In this regard, you can either create VM instances by using public networks with the flat network type, or create VM instances separately by using vRouter network environments and VPC environments.

Create Public Network

In the navigation pane of the ZStack Private Cloud UI, choose Network Resource > L3 Network > Public Network. On the Public Network page, click Create Public Network. On the displayed Create Public Network page, set the following parameters:
  • Name: Enter a name for the public network.
  • Description: Optional. Enter a description for the public network.
  • L2 Network: Select the corresponding L2 network for the public network.
    Note: ZStack Private Cloud allows you to create multiple L3 networks by using an L2 network. However, we do not recommend to do so unless you have special business requirements.
    Click the Plus sign (⊕) under the L2 Network field. Then, the Select L2 Network page is displayed on the right. This page has the following two tabs:
    • Default: Display a list of L2 networks that do not have an L3 network attached in the current zone.
    • All: Display a list of all L2 networks in the current zone, including the L2 networks that have or not have an L3 network attached.

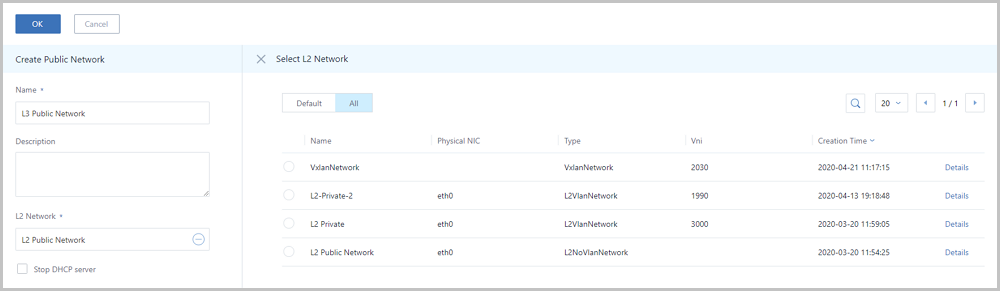

    An L2 network can be selected, as shown in Select L2 Network.
    Figure 1. Select L2 Network


  • Stop DHCP server: Choose whether to enable the DHCP service.
    Note:
    • By default, this checkbox is not selected, indicating that the DHCP service is enabled, and IP addresses will be automatically allocated to VM instances. In this case, you can customize a DHCP IP address, or let the system randomly specify a DHCP IP address.
    • If selected, the DHCP service will be disabled, indicating that VM instances that use this network cannot obtain IP addresses automatically, and need to be configured manually with IP addresses. In this case, you cannot customize the DHCP IP address. In addition, the system cannot randomly specify a DHCP IP address.
  • Add IP Range: Select a network address type, including IPv4 and IPv6. Then, add a network range, including IP range and CIDR.
    Next, we will introduce 4 types of network range scenario successively as follows.
    1. IPv4 | IP Range.
      If you select the IPv4 network address and add the network range via IP Range, set the following parameters:
      • Start IP: Enter a start IP address for the network range, such as 172.20.108.100.
      • End IP: Enter an end IP address for the network range, such as 172.20.108.200.
      • Netmask: Enter a netmask for the network range, such as 255.255.0.0.
      • Gateway: Enter a gateway for the network range, such as 172.20.0.1.
      • DHCP IP: Optional. Enter a DHCP IP address as needed, such as 172.20.108.10.
        Note:
        • If you create an L3 network and enable the DHCP service for the first time, or if you add the first IP range for the L3 network of the enabled DHCP service, you can customize the DHCP IP address.
        • If the L3 network has a DHCP IP address, you cannot customize the DHCP IP address when you add an IP range.
        • The DHCP IP address can be included or excluded on the added IP range. However, the DHCP IP address must be within the CIDR to which the added IP range belongs, and must not be occupied.
        • The IP range specified within the start IP address and end IP address cannot contain IP addresses of the link-local address (169.254.0.0/16).
        • If not specified, the system will randomly specify an IP address within the IP range that you added.

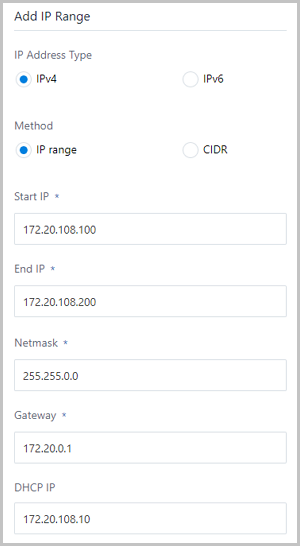

      An IPv4 address with the IP range can be selected, as shown in IPv4 | IP Range.
      Figure 2. IPv4 | IP Range


      Note: When you add network ranges with IPv4 | IP Range, note the following:
      • You must not include the gateway (for example, xxx.xxx.xxx.1), broadcast address (for example, xxx.xxx.xxx.255), and network address (for example, xxx.xxx.xxx.0) in the added IP range.
      • The network range of a private network cannot overlap with the public network or management network on a vRouter offering.
    2. IPv4 | CIDR.
      If you select the network address with the IPv4 and add the network range with CIDR, set the following parameters:
      • CIDR: Enter a CIDR for the network range, such as 192.168.108.1/24.
      • Gateway: Set a gateway, such as 192.168.108.1.
        Note:
        • The first or the last allowed CIDR IP address can act as a gateway.
        • If null, the first IP address that is used by default will serve as a gateway.
      • DHCP IP: Optional. Set a DHCP IP address as needed, such as 192.168.108.10.
        Note:
        • If you create an L3 network and enable the DHCP service for the first time, or if you add the first network range for the L3 network of the enabled DHCP service, you can customize the DHCP IP address.
        • If the L3 network has a DHCP IP address, you cannot customize the DHCP IP address when you add the IP range.
        • The DHCP IP address can be included or excluded on the IP range that you added. However, the DHCP IP address must not be in conflict with the current CIDR.
        • If not specified, the system will randomly specify an IP address within the added IP range.
        • The first IP address in a CIDR is deemed as a gateway by default, and cannot serve as a DHCP IP address.

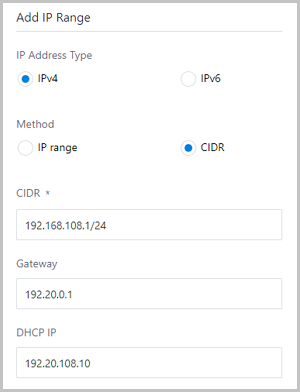

      An IPv4 address with the CIDR format can be selected, as shown in Figure 3.
      Figure 3. IPv4 | CIDR


      Note: If you add a network range with IPv4 | CIDR, set the following parameters:
      • The IP range specified in the CIDR cannot contain IP addresses of the link-local address (169.254.0.0/16).
      • The network range of a private network cannot overlap with the public network or management network on a vRouter offering.
    3. IPv6 | IP Range.
      If you select the network address with the IPv6 and add the network range with the IP range, set the following parameters:
      • Mode: Provide an IP allocation method. Default method: Stateful-DHCP.
        Note:
        • Stateful-DHCP: Set a stateful IP address by using the DHCP protocol.

          You can configure both access addresses and other parameters by using the DHCP protocol.

      • Start IP: Enter a start IP address for the network range, such as 2000:910A:2222:5498:8475:1111:3900:2002.
      • End IP: Enter an end IP address for the network range, such as 2000:910A:2222:5498:8475:1111:3900:2009.
      • Prefix Length: Enter a prefix length for the network range, such as 64.
        Note: The prefix length is 64-126. If less than 64, you will fail to create VM instances.
      • Gateway: Enter the gateway for the network range, such as 2000:910A:2222:5498:8475:1111:3900:2001.
      • DHCP IP: Optional. Set a DHCP IP address as needed, such as 2000:910A:2222:5498:8475:1111:3900:2006.
        Note:
        • If you create an L3 network and enable the DHCP service for the first time, or if you add the first IP range for the L3 network of the enabled DHCP service, you can customize the DHCP IP address.
        • If the L3 network has a DHCP IP address, you cannot customize the DHCP IP address when you add an IP range.
        • The DHCP IP address can be included or excluded on the added IP range. However, the DHCP IP address must be within the CIDR to which the added IP range belongs, and must not be occupied.
        • The IP range specified within the start IP address and end IP address cannot contain IP addresses of the link-local address (169.254.0.0/16).
        • If not specified, the system will randomly specify an IP address within the IP range that you added.

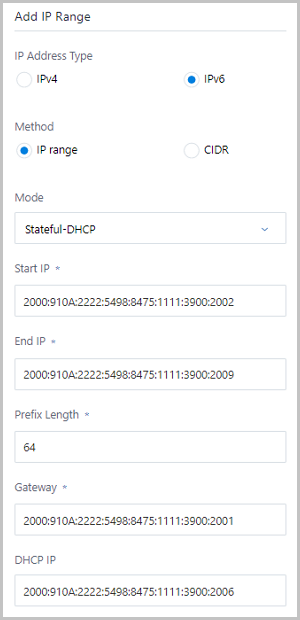

      An IPv6 address with the IP range can be selected, as shown in IPv6 | IP Range.
      Figure 4. IPv6 | IP Range


      Note: If you add a network range with IPv6 | IP Range, set the following parameters:
      • You must not include the gateway (for example, xxxx::1) in the added IP range.
      • The IP range specified within the start IP address and end IP address cannot contain IP addresses of the link-local address (fe80::/10).
      • The network range of a private network cannot overlap with the public network or management network on a vRouter offering.
    4. IPv6 | CIDR:
      If you select the network address with the IPv6 and add the network range with a CIDR, set the following parameters:
      • Mode: Provide three types of IP allocation method: Stateful-DHCP, Stateless-DHCP, and SLAAC.
        Note:
        • Stateful-DHCP: Set a stateful IP address by using the DHCP protocol. Default method: Stateful-DHCP.

          You can configure both access addresses and other parameters by using the DHCP protocol.

        • Stateless-DHCP: Set a stateless IP address without using the DHCP protocol.

          Access addresses can be automatically derived from the prefix length advertised by routes, while other parameters can be configured by using the DHCP protocol.

        • SLAAC: Automatically set the stateless IP address.

          Access addresses can be automatically derived from the prefix length advertised by routes, while other parameters are accompanied in the route advertisement.

      • CIDR: Enter CIDR for the network range, such as 234E:2457:3D::/64.
      • DHCP IP: Optional. Set the DHCP IP address as needed, such as 234E:2457:3D::F.
        Note:
        • If you create an L3 network and enable the DHCP service for the first time, or if you add the first network range for the L3 network of the enabled DHCP service, you can customize the DHCP IP address.
        • If the L3 network has a DHCP IP address, you cannot customize the DHCP IP address when you add the IP range.
        • The DHCP IP address can be included or excluded on the IP range that you added. However, the DHCP IP address must not be in conflict with the current CIDR.
        • If not specified, the system will randomly specify an IP address within the added IP range.
        • The first IP address in a CIDR is deemed as a gateway by default, and cannot serve as a DHCP IP address.

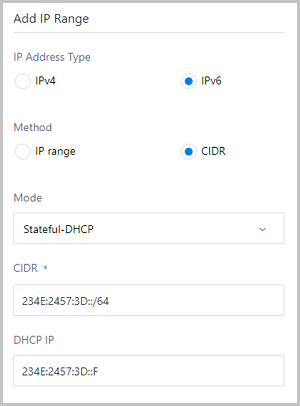

      An IPv6 address with the CIDR format can be selected, as shown in Figure 5.
      Figure 5. IPv6 | CIDR


      Note: If you add a network range with IPv6 | CIDR, set the following parameters:
      • The first IP address in a CIDR has been deemed as a gateway by default.
      • The IP range specified in the CIDR cannot contain IP addresses of the link-local address (fe80::/10).
      • The network range of a private network cannot overlap with the public network or management network on a vRouter offering.
  • Add DNS: Add a DNS server used for configuring the DNS service of the L3 network.
    • IPv4 type: For example, specify 223.5.5.5, 8.8.8.8 or 114.114.114.114.
    • IPv6type: For example, specify 240C::6644 or 240C::6666.

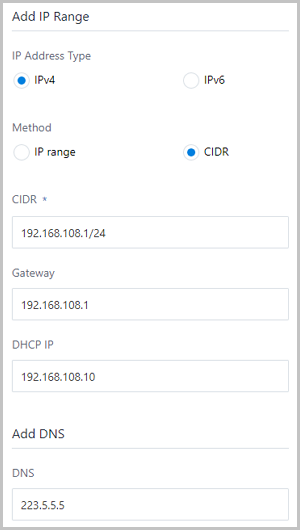

Create a public network with an IPv4 address with the CIDR format, as shown in Create Public Network with IPv4 | CIDR.
Figure 6. Create Public Network with IPv4 | CIDR




Public Network Operations

You can perform the following operations on a public network:
  • Create public network: Create a new public network.
  • Share to all: Share the public network to all projects or regular accounts. Make sure that you have installed the License of the Enterprise Management module.
  • Recall from all: Recall the public network from all projects or regular accounts. Make sure that you have installed the License of the enterprise management module. You can make these projects or regular accounts invisible.
  • Delete: Delete the public network.
    Note: Exercise caution. If you delete the public network, you will detach the VM NICs that are using this network. In addition, you will delete the corresponding routers, network services, and vRouter offerings.

Notice

Make sure that the IP range of the public network can reach the Internet. Otherwise, vRouters or VPC vRouters cannot work properly.
