L2NoVlanNetwork

In the navigation pane of the ZStack Private Cloud UI, choose Network Resource > L2 Network Resource > L2 Network. On the L2 Network page, click Create L2 Network. On the displayed Create L2 Network page, set the following parameters:

• Name: Enter a name for the L2 network.
• Description: Optional. Enter a description for the L2 network.
• Type: Select L2NoVlanNetwork.
• Physical NIC: Enter the name of the L2 network device, such as em01.
• Enable SR-IOV: Choose whether to enable SR-IOV.
  • By default, this checkbox is not selected, indicating that SR-IOV is not enabled. In this case, the SR-IOV cannot be enabled for the L3 network corresponding to this L2 network.
  • If selected, SR-IOV is enabled. In this case, the SR-IOV can be enabled for the L3 network corresponding to this L2 network. Make sure that VF NICs are generated from the physical NICs used by the L2 network through SR-IOV.
• Cluster: Optional. Select the cluster to be attached.
  Note:

  • When you create an L2 network with the L2NoVlanNetwork type, you can attach it to a cluster. Or, you can attach it to the cluster after you create the L2 network with the L2NoVlanNetwork type, as shown in Create L2NoVlanNetwork.
  • If the L2 network is not attached to the cluster, you cannot use this L2 network to create VM instances.

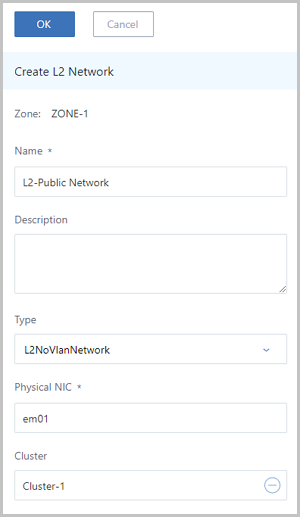

You can create an L2NoVlanNetwork, as shown in Create L2NoVlanNetwork.
